Building the wing
Started on 03-09-2003 ;o)


Page 1 of 2 - Next Page

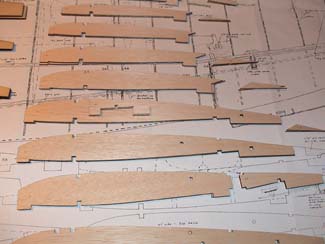

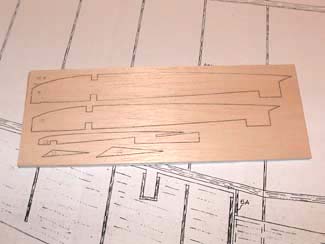

01-09-2003: Unpacked the laser cut wing parts and put the plan on the table.







05-09-2003: Sean sended me some templates for the Shindin retracts, have to cut them out..

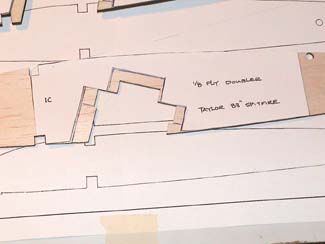

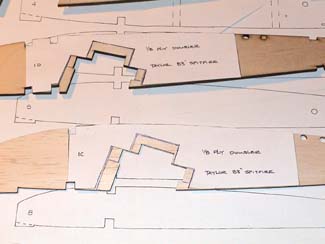

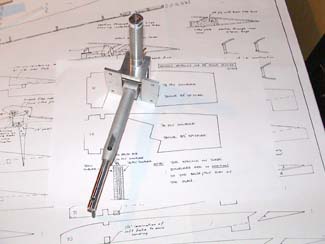

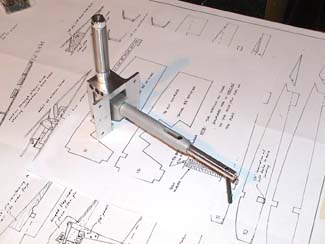

05-09-2003: Shindin retracts on the template paper.

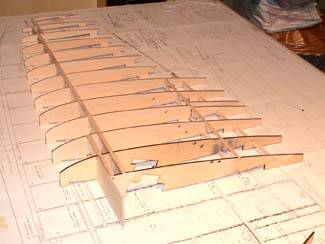

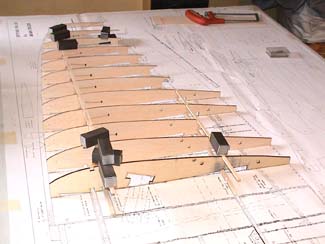

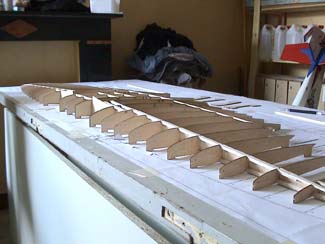

06-09-2003: One part of the ribconstruction.

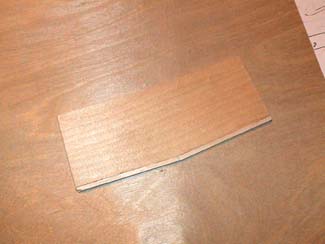

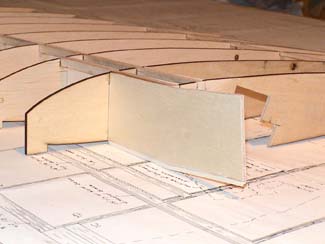

06-09-2003: Almost ready to install the hardwood for the retracts.

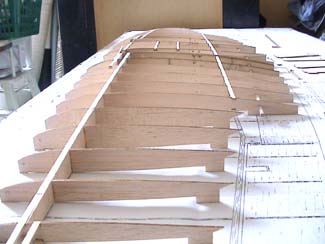

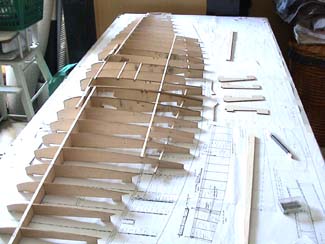

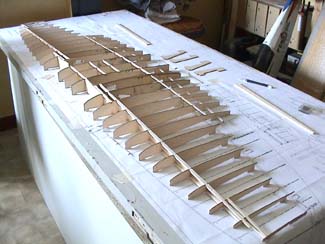

07-09-2003: The middle section of the wing is half done.



Page 1 of 2 - Next Page
